# Graphing Distributions

This post will demonstrate how:

1. Use the `twoway function’ plotting command to visualize distributions
2. Add colored shading to a graph to visualize portions of a distribution

## The `twoway function` command

The `twoway function` plotting command is used to plot functions, such as `y = mx + b`. If we want to plot the density of a normal distribution across a range of x values, we type `y=normalden(x)`. You can also include graphing options available to twoway plots (e.g., `xtitle`).

```twoway function y=normalden(x), range(-4 4) xtitle("{it: x}") ///
ytitle("Density") title("Standard Normal Distribution")
```

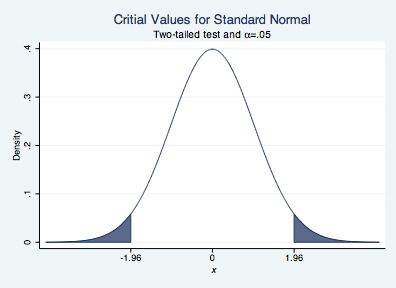

Suppose we want to shade parts of a distribution above (or below) a particular critical value. For example, we can shade a normal distribution above 1.96 and below -1.96 if we want critical values for a two-tailed test with an alpha-level of .05. To do this we will draw 3 graphs.

1. A normal curve from -4 to -1.96
2. A normal curve from -1.96 to 1.96
3. A normal curve from 1.96 to 4

The choice of -4 and 4 as upper and lower bounds is arbitrary. You can connect the three graphs by using a double pipe, `||`, between calls to the `twoway function` command. We will shade the area under the curve for #1 and #3 using the `recast(area)` option of `twoway function`. We will assign the color of the shading to dark navy blue using the `color(dknavy)` option. We will leave the area under the curve for #2 unshaded.

```twoway function y=normalden(x), range(-1.96 1.96) color(dknavy) || ///
function y=normalden(x), range(-4 -1.96) recast(area) color(dknavy) || ///
function y=normalden(x), range(1.96 4) recast(area) color(dknavy) ///
xtitle("{it: x}") ///
ytitle("Density") title("Critial Values for Standard Normal") ///
subtitle("Two-tailed test and {&alpha}=.05") ///
legend(off) xlabel(-1.96 0 1.96)
```

We can repeat for a one-tailed test.

```twoway function y=normalden(x), range(-4 1.64) color(dknavy) || ///
function y=normalden(x), range(1.64 4) recast(area) color(dknavy) ///
xtitle("{it: x}") ///
ytitle("Density") title("Critial Values for Standard Normal") ///
subtitle("One-tailed test and {&alpha}=.05") ///
legend(off) xlabel(0 1.64)
```

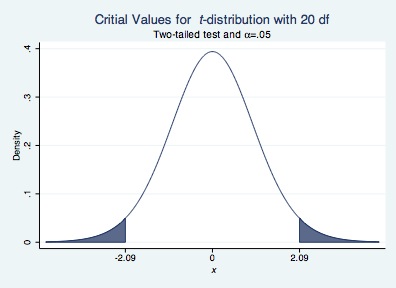

We can also visualize other distributions available in Stata. Below, I provide an example of a t-distribution with 20 degrees of freedom

```twoway function y=tden(20,x), range(-2.09 2.09) color(dknavy) || ///
function y=tden(20,x), range(-4 -2.09) recast(area) color(dknavy) || ///
function y=tden(20,x), range(2.09 4) recast(area) color(dknavy) ///
xtitle("{it: x}") ///
ytitle("Density") title("Critial Values for {it: t}-distribution with 20 df") ///
subtitle("Two-tailed test and {&alpha}=.05") ///
legend(off) xlabel(-2.09 0 2.09)
```
